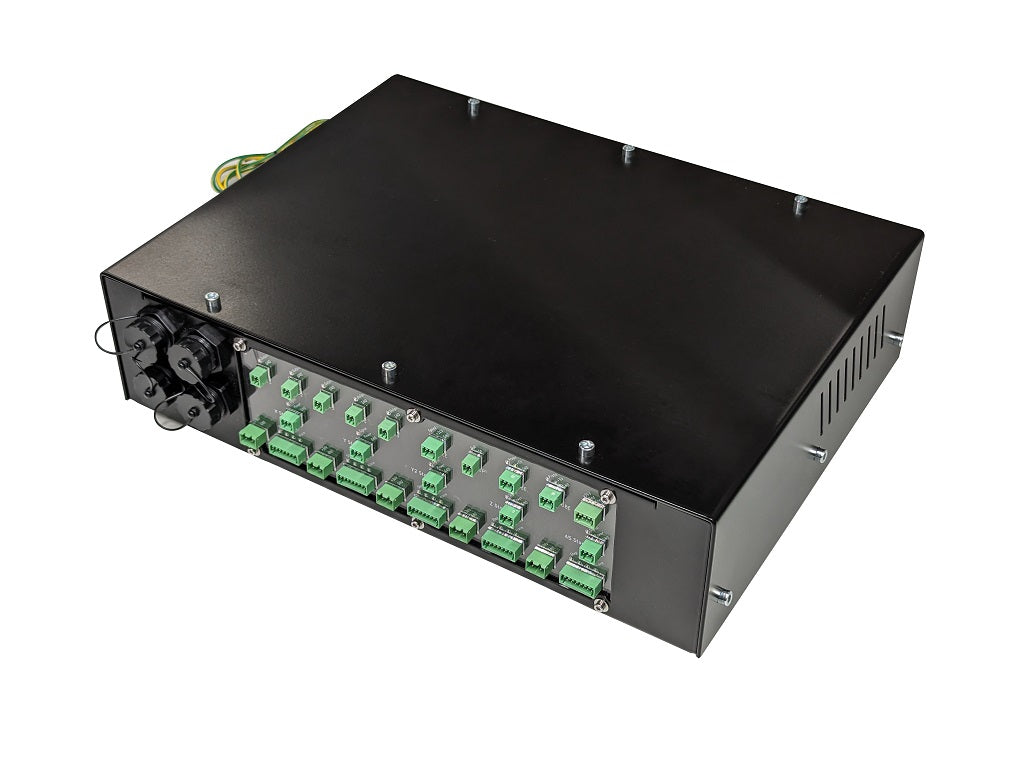

MAX Switchcabinet

CNC ONE - MAX Schaltschrank v1.2

Powerful control cabinet for operating the CNC ONE MAX.
Equipped with Raspberry PI4B and pre-installed LinuxCNC for an uncomplicated start.

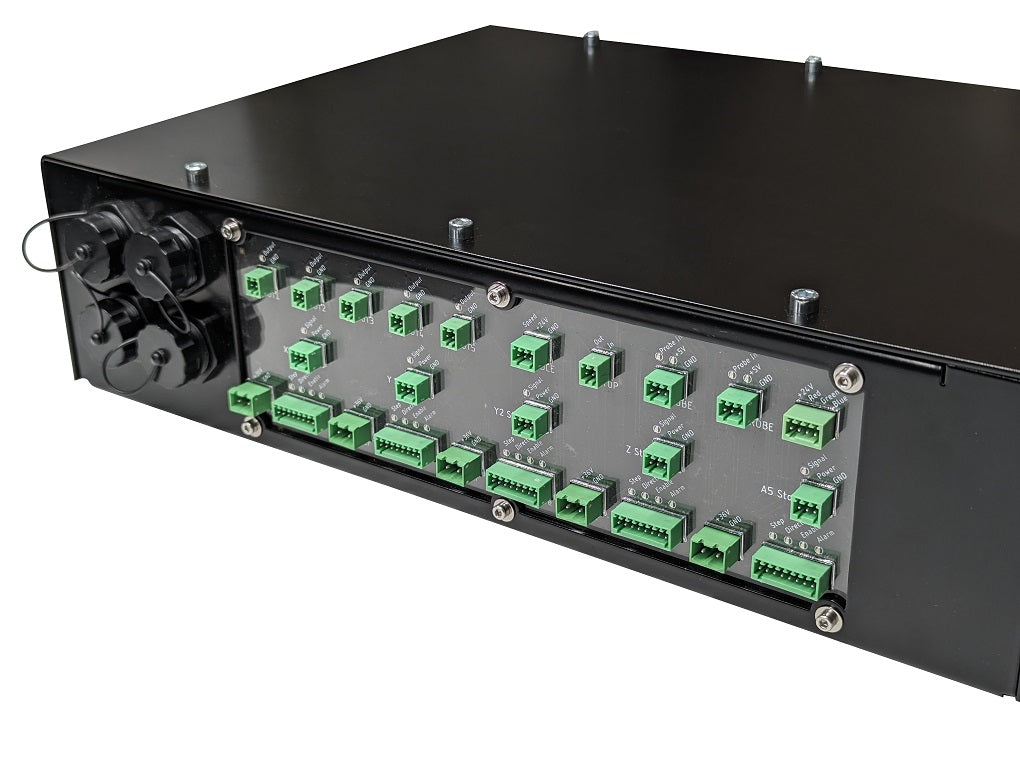

Outputs:

• 2 x USB-A sockets for USB stick and touch screen
• 1 x HDMI output
• 1 x Ethernet
• 1 x 230V Schuko socket (unswitched) max. 10A
• 5 x servo axes with step/dir/enable/alarm/end stop
• 5 x 24V general outputs
• 1 x Spindle 0-10V output
• 1 x RGB Led Strip output

Inputs:

• 1 x 100-240VAC supply voltage
• 1 x emergency stop input
• 1 x Z-Probe input
• 1 x XYZ-Probe input Connector suitable for the MAX series drag chain.

What's inside:

• 1x CNC ONE switch cabinet
• 1x Schuko power cable
• 1x emergency stop
